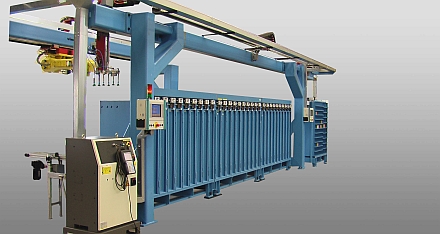

Picking system with robotic system

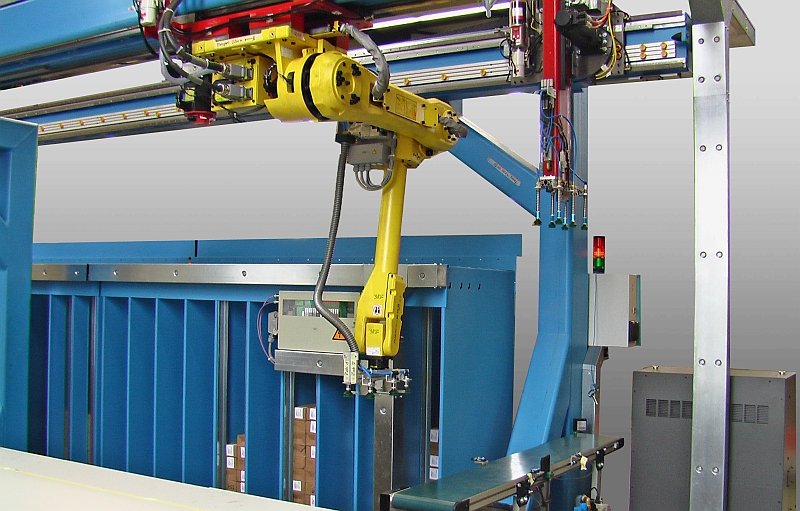

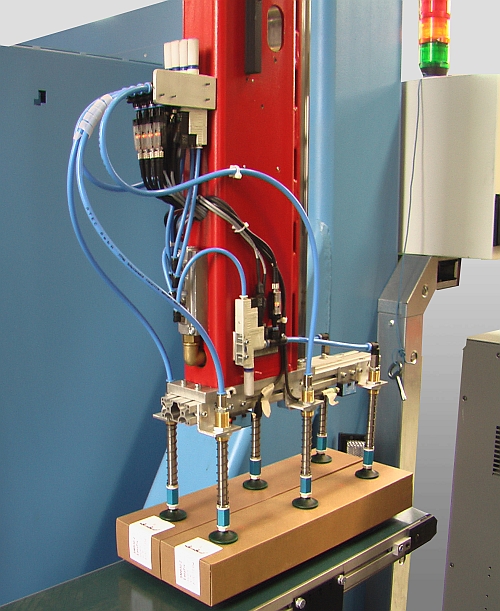

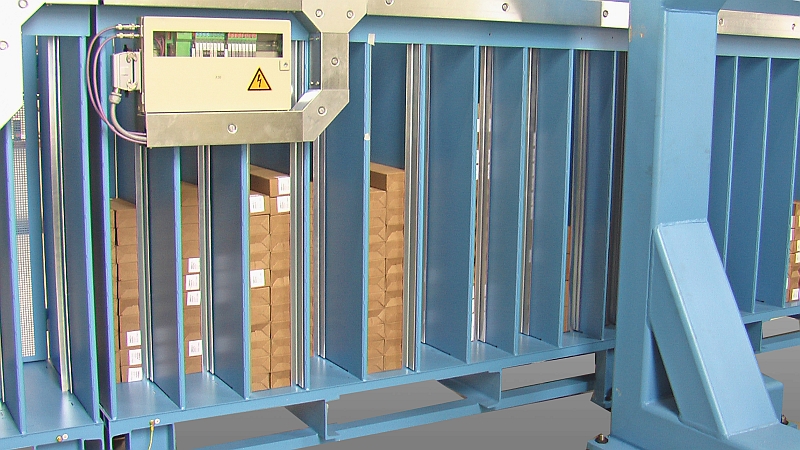

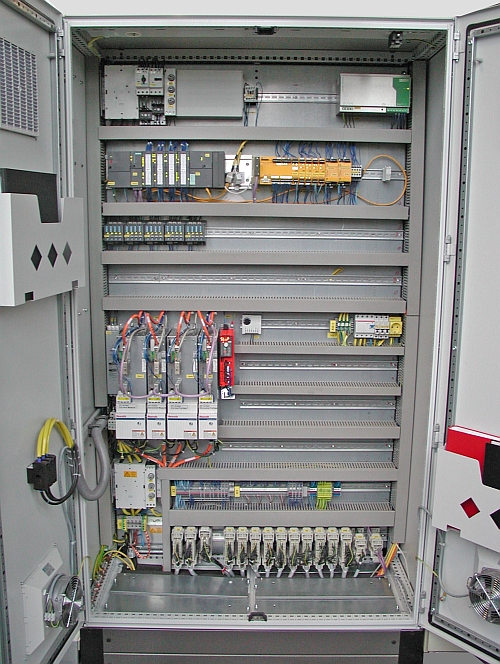

Using two 2-axis NC units with vacuum cups, various workpieces are extracted from two rack systems with approx. 200 compartments and delivered to a six-axis articulated arm robot. This places the workpieces in predefined positions according to size, in order that these can be automatically packaged by a downstream system. The fully automatic process is guaranteed through the connection with a superordinate control system.
